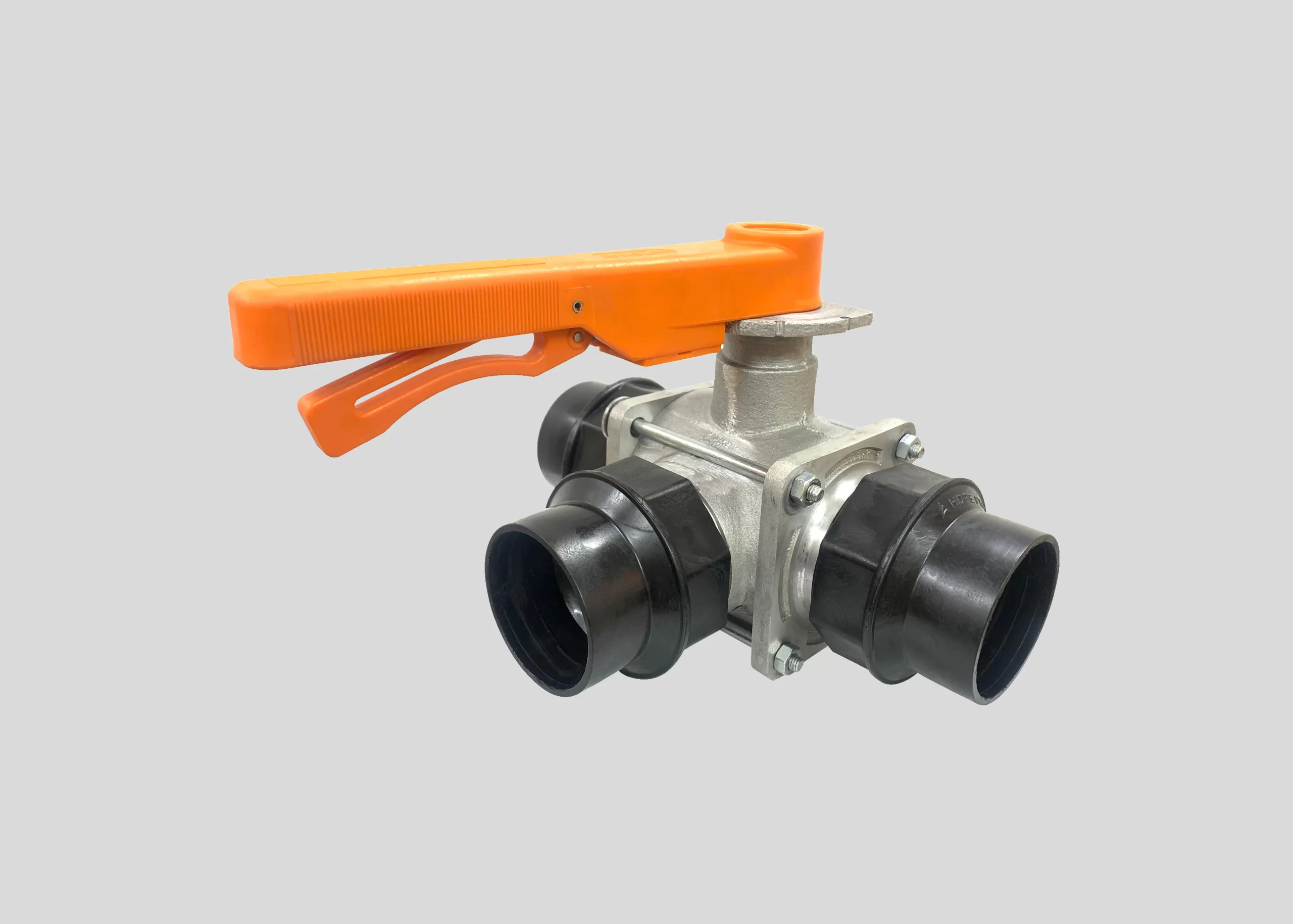

Line Changer - 3 Way Ball Valve
Applications
- Sprinkler Irrigation
- Drip Irrigation
- Flood Irrigation
- Any Water Piping System
Features and Benefits
- Efficient Diversion & Flow Control : Easy to divert flow in “L” direction from one sprinkler irrigation piping system to another. Option of partial diversion varying from 25% TO 75% for better flow control
- Corrosion-Proof & Long-Lasting: The aluminum body enhances the valve's longevity compared to the existing 'Steel' made valves available in the market
- Effortless Operation: Long handle for effortless opening and closing of valve during flow diversion
- Proficient Engineered Design: The internal construction of the valve allows minimum obstruction hence minimum pressure loss and high flow rate
- Locking Option: Handle locking feature which prevents handle movement when the system is running
- Superior Quality Parts: High quality ball & seal for long life
- Lightweight & Durable: Made of aluminum which gives it adequate strength & makes it lightweight
- Stress-Free Maintenance: Easy to dismantle and remove from piping system for maintenance

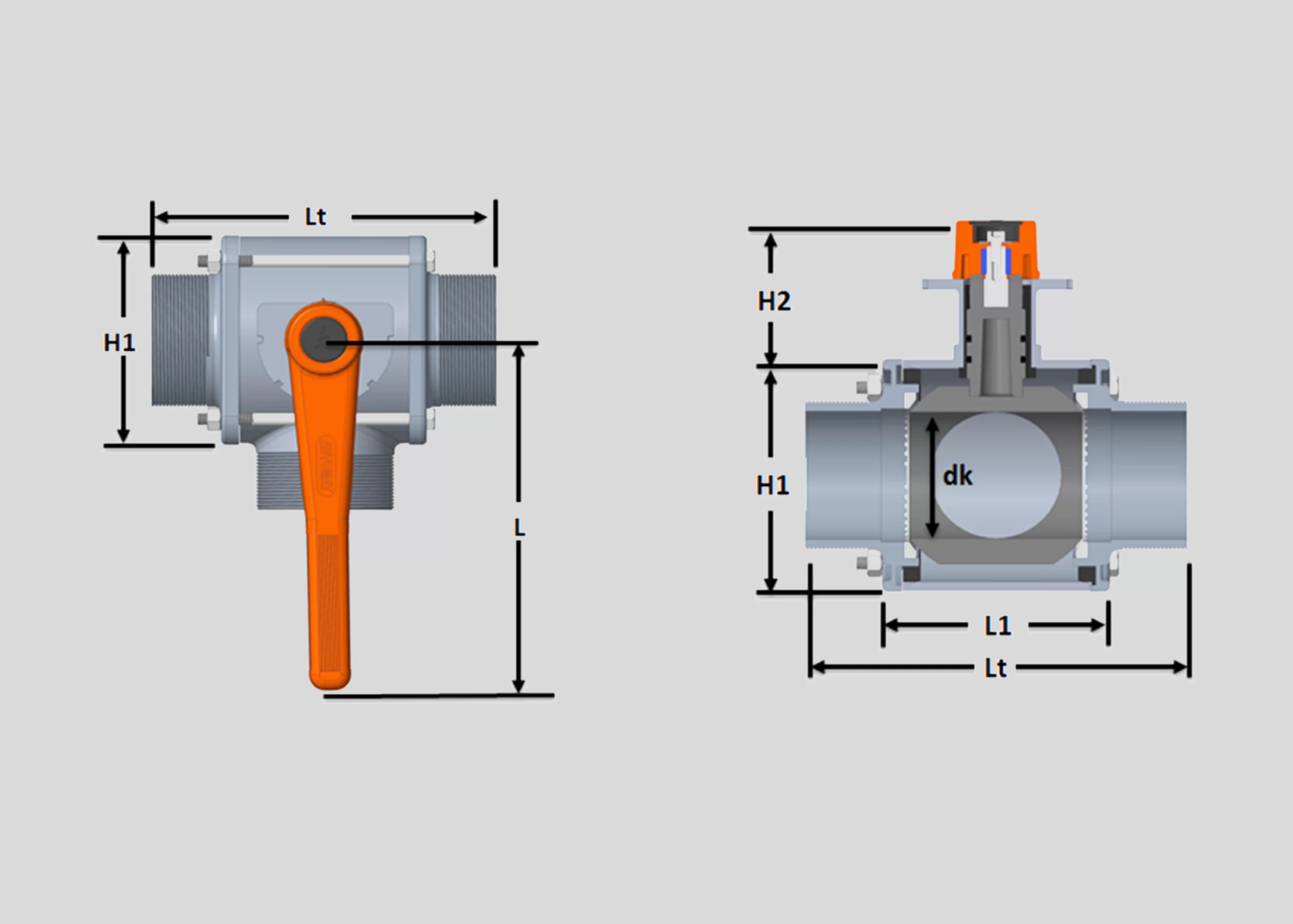

Dimensions
| Nominal Size | 2” (50mm) | 21/2” (65mm) | 3” (80mm) | |
|---|---|---|---|---|
| HT-366 | HT-367 | HT-368 | ||
| BSP | Thread | 11 | 11 | 11 |
| Dk | Mm | 49 | 59 | 76 |
| H1 | Mm | 48 | 107 | 138 |
| H2 | Mm | 95 | 89 | 89 |
| L1 | Mm | 89 | 113 | 130 |
| Lt | Mm | 151 | 191 | 218 |
| L | mm | 140 | 230 | 230 |
