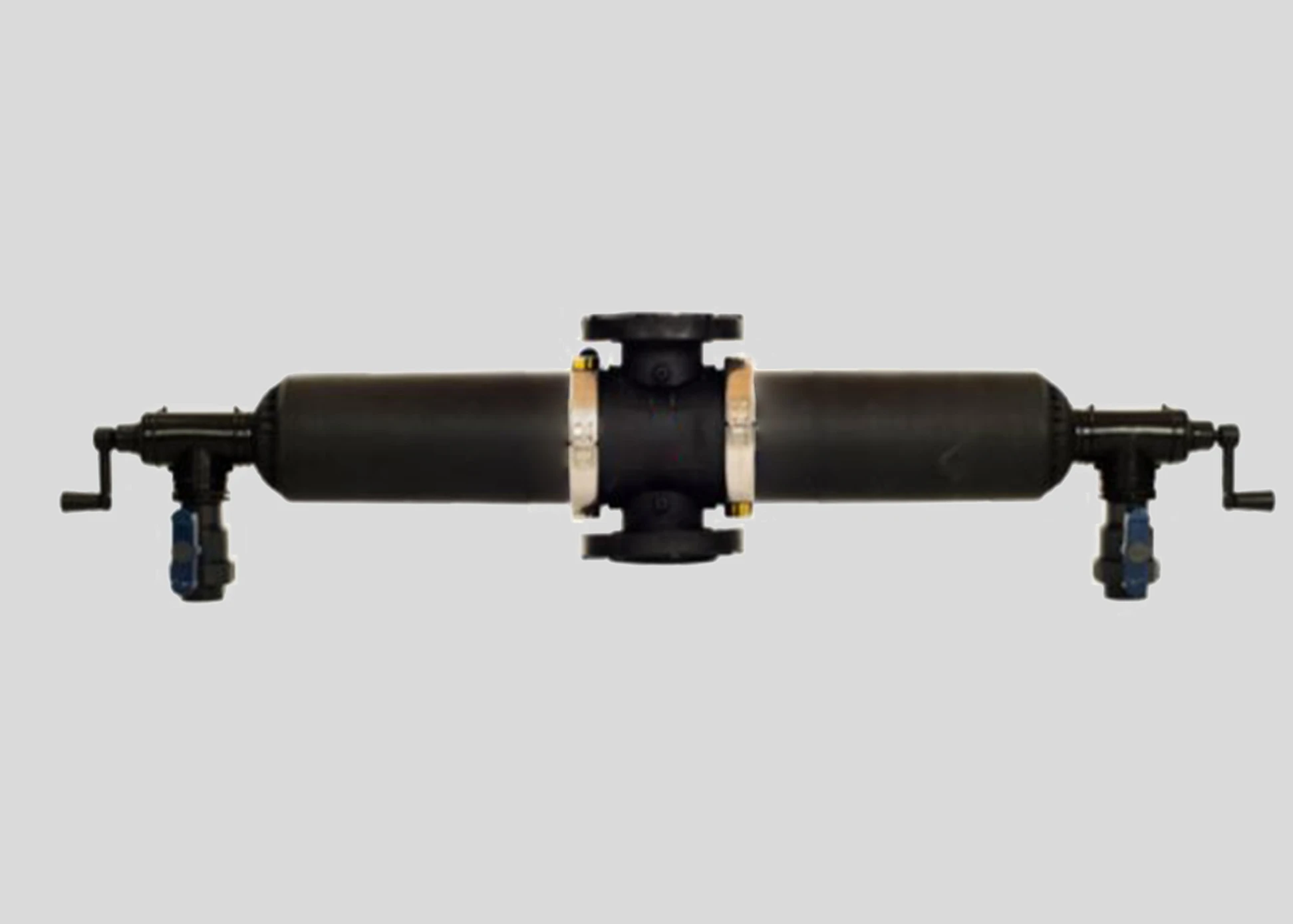

Semi Automatic Screen Filter
Applications
- Primary Filtration for Agriculture Drip and Micro-Irrigation System.
- Primary Filtration for Landscaping Applications.
- Secondary Filtration for Media Filter Systems and Sand Separators.
- In-Field Secondary Filters for Extra Protection.
Features and Benefits
- Eliminates The Need of Turning Off the Water and Pulling the Filter Screens for Cleaning.
- Clear Indication When the Filter Needs to Be Clean by The (Cl) Clogging Indicator Red Flag.
- Extra-Large Filter Area Provides Better Protection for The Irrigation System.
- Extra Strong Stainless Screen Uses Unique Weaving for More efficient Cleaning Process.
- Easy Installation and Maintenance Process.
- Made from High Quality Engineered Plastic for Mechanical Strength, Durability and Non-Corrosiveness±
- 100/130/200 - Micron Size Screens Suited to A Variety of Applications.
Technical Specifications
| Category | 528D-SA |
|---|---|
| Nominal size | 4”/100mm |
| Connection type | BSP?NPT Threaded/ Flanged/Victaulic Ends |
| Max. Pr. | 8kg/cm2 |
| Max. Flow. | 90 m3/hr |
| Filtration degree microns | 100/130/200 Microns |
| Filtration surface area | 3324 cm2 |
| Flush port | 11/2” – Male threaded BSP/NPT |
| Flush Valve | 11/2” –FXF threaded BSP/NPT |
* Flow depends on water quality.
