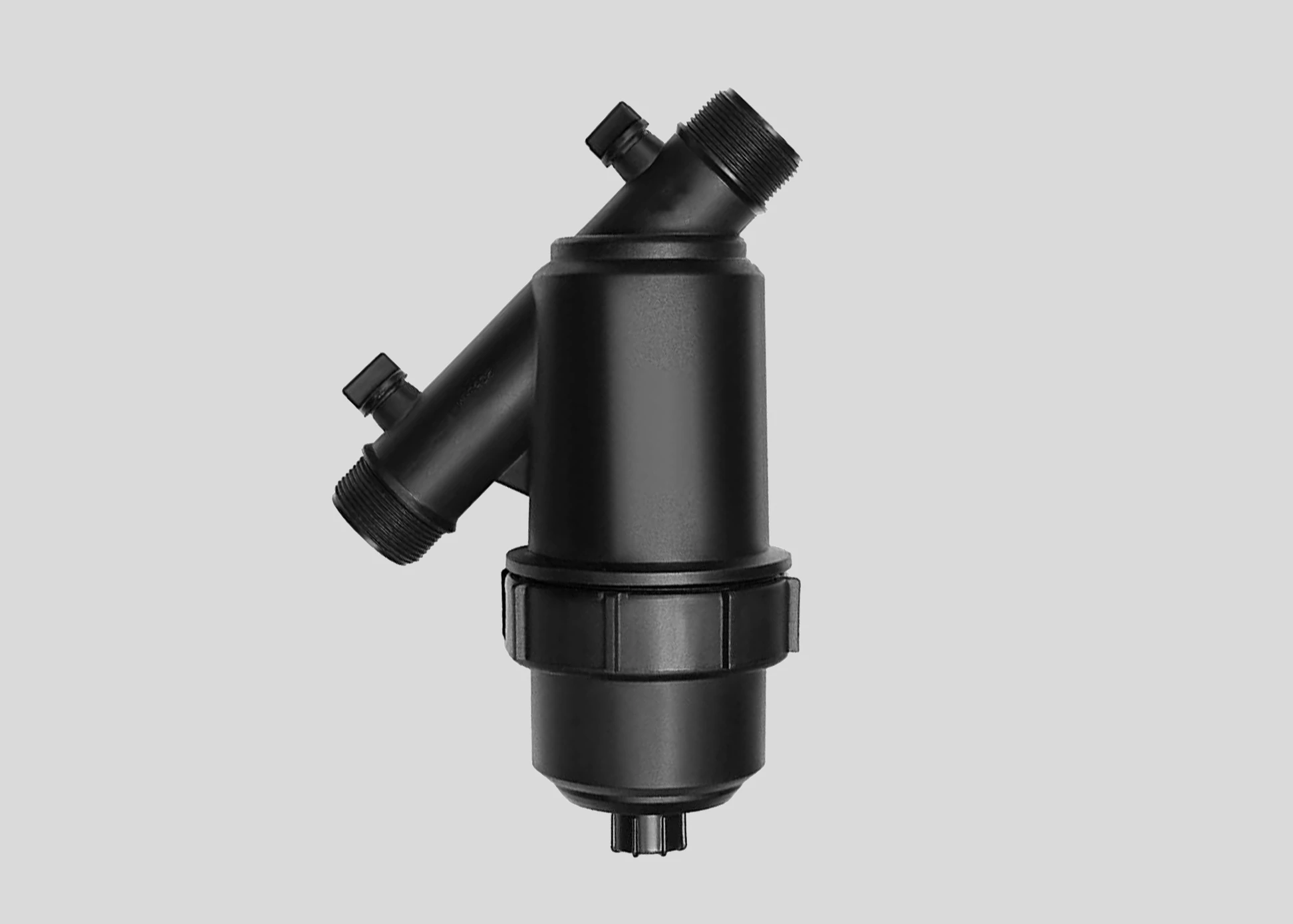

Y-Type Disc Filters
Features & Benefits
- Disc Filter Designed for outside to inside flow.
- Filter body and cap connected by threaded connection to sustain high pressure and easy opening & closing
- High filtration efficiency
- Spring loaded disc cartridge for uniform compression of discs.
- UV protected, chemical and high pressure resistant reinforced plastic material used.
Applications
-

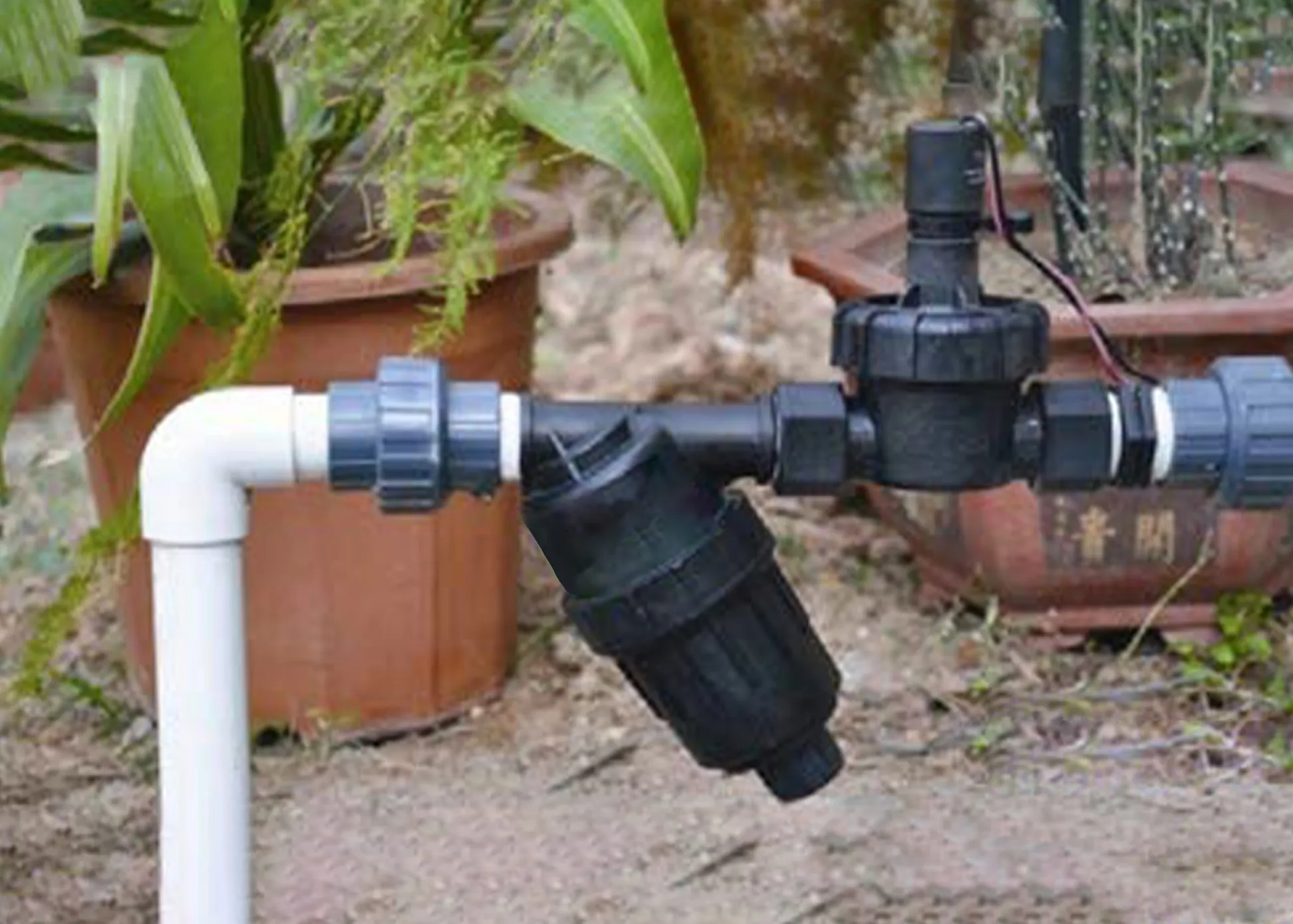

Landscape & turf, kitchen garden, small nurseries:
-Removes physical impurities which prevents clogging of emitting devices having small aperture. -
Household water tank:
-Removes physical impurities from water supply collected in rooftop tanks.
-It further helps in reducing the load on R.O filter & other appliances.
| Specification | HT – 131Y | HT – 132Y | HT-533YS | HT-533Y |
|---|---|---|---|---|
| Inlet/Outlet connection | ¾; BSP/NPT male thread | 1” BSP/NPT Male thread | 11/4 BSP/NPT male thread | 11/4 BSP/NPT male thread |
| Max. Working pressure | 4kg/cm2 | 4 kg/cm2 | 4 kg/cm2 | 4 kg/cm2 |
| Range of flow rate | 3 – 5 m3/h | 5 – 8 m3/h | 10-20 m3/h | 10-20m3/h |
| Nominal flow rate | 3m3/h | 6m3/h | 15 m3/h | 15 m3/h |
| Filtration Surface area | 147.5 cm2 | 147.5 cm2 | 400 cm2 | 400 cm2 |
| Material of conservation | Glass Filled Polypropylene / Polyamide | |||
| Disc Material | Polypropylene Disc | |||
| Cartridge Diameter ( with O-ring) | 48 mm | 48 mm | 71.5 mm | 71.5 mm |
| Cartridge Length | 180 mm | 180 mm | 258 mm | 258 mm |
| Available Mesh | 120 mesh | 120 mesh | 120 mesh | 120 mesh |
| Flush port | 3/4” Male threaded | |||
| Flush valve | ¾” – End cap/ Flush Value MxF | |||
| Specification | HT-134Y |
|---|---|
| Inlet/Outlet connection | 2” BSP/NPT Male thread |
| Max.Working pressure | 4 kg/cm2 |
| Range of flow rate | 18 – 27 m3/h |
| Nominal flow rate | 25 m3/h |
| Filtration Surface area | 508 cm2 |
| Materials of Contraction | Glass filled polypropylene/ polyamide |
| Material of screen / Disc | Polypropylene Disc |
| Cartridge Length | 292 mm |
| Cartridge Diameter ( with O-ring) | 111mm |
| Available Mesh | 120 mesh |
| Flush port | ¾” Male threaded |
| Flush valve | ¾” End cap / Flush Valve MXF |
